Trade Select Thermal Break / Thermal Brane
Reflective Foam Insulation
RESIDENTIAL
COMMERCIAL
INDUSTRIAL
RM Industries are the appointed
VIC, NSW, ACT and TAS sales agents for Ametalins TradeSelect product range.
AmetalinThermalBreak 8
Thermal break
The BCA (Building Code of Australia) now requires certain buildings incorporating steel frame roofs (with exposed beams and or raked ceilings) or walls include a minimum thermal break of R0.2 between the roof or wall cladding and steel frame to reduce thermal bridging and conductivity between these buildings elements.
Ametalin ThermalBreak 8™ meets the NCC/BCA requirements
for in-situ material R-value of R0.2 for a thermal break in steel framed construction.
How it works
HOW IT WORKS

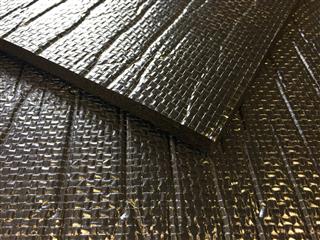

TradeSelect™ ThermalBrane™ & ThermalBreak 8™ are made with compression resistant high-density XPE foam between two reflective foil layers, which reflect radiant heat to keep buildings cool in summer and warm in winter. They are manufactured using Advanced Laminating Technology to provide superior resistance to heat, fire and delamination.
Reflectivity: ThermalBrane™ & ThermalBreak 8™ reflect up to 97% of radiant heat to ensure you are kept cool in summer and warm in winter. By re-radiating heat, they keep energy loss to a minimum, reducing heating and cooling costs.

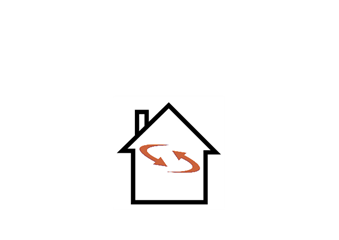

Low Conduction: The specially developed foam reduces heat transfer through closed cell air pockets.

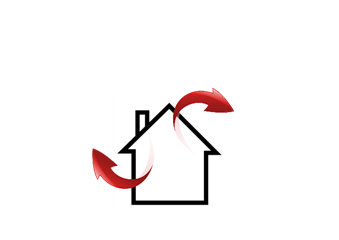

Low Convection: ThermalBrane™ & ThermalBreak 8™ trap still air and reduce the event of convection occurring.
These products work by reducing heat transfer in 3 ways:

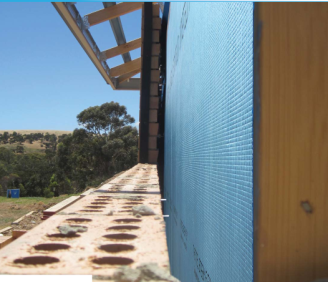

Brick Construction

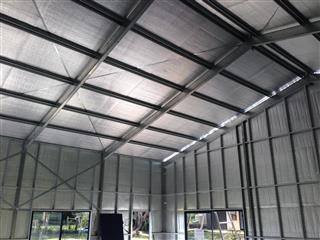

Steel Shed Walls and Roof insulated using Thermal Brane 4
ROOFS
WALLS
STEEL FRAME CONSTRUCTION
SHEDS
The TradeSelect™ range of products provide a 4-in-1 solution as a reflective insulation, acoustic dampener, thermal break and water barrier. They are fire resistant, highly effective in dampening noise and water resistant, making them an ideal choice for all building types.
ThermalBreak 8™ and Thermal Brane 6™ has an innovative foil overlap piece that provides and extra 3m2 coverage per roll. Providing you 30m2 coverage per roll, compared to 27m2 for our competitors.
Building systems for thermal comfort and energy efficiency

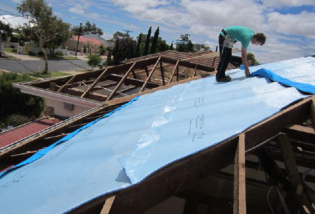

Roof insulated using ThermalBreak 8
Trade Select ™ ThermalBrane 4™ has been designed as the economical choice of product in the range and can be installed in sheds, walls and roofs. At 4mm it is the thinnest, most flexible and compact of the product range, making it ideal for use in tight spaces or cavities. Installed total system R-values* range up to R2.1 for Walls, R2.6 for Metal Roofs and R2.3 for Tile Roofs.
TradeSelect ThermalBrane 4 is available in rolls 1.5m x 20m (30m²)
Bushfire Attack Levels
For use in roof systems BAL– LOW to BAL –40 and wall systems BAL – LOW to BAL – FZ to comply with AS 3959—2009 Construction of buildings in bushfire prone areas.
Product Details
Aramid Woven Fabrics
DESCRIPTION
CODE
THICKNESS
COVERAGE
CLICK FOR DATA SHEET
TSTB6-30
TSTB4-30
TradeSelect™ Thermal Brane 4™
Roll Size 1500mm x 20 metres (30² Metres)
TradeSelect™ Thermal Brane 6™
Roll Size 1350mm x 22.25 metres (30² Metres) PLUS 150mm OVERFLAP
4mm
6.5mm
30² Metres
30² Metres
*TSTB8-30 MEETS NCC/BCA REQUIREMENTS FOR A THERMAL BREAK OF R0.2 IN STEEL FRAMED CONSTRUCTION
TSTB8-30*
TradeSelect™ Thermal Break 8™
Roll Size 1350mm x 22.25 metres (30² Metres) PLUS 150mm OVERFLAP
8mm
30² Metres
Down load brochure for more information
