ThermalFloor Under Floor Insulation
ThermalFloor Underfloor
Download technical data sheet
ThermalFloor Technical Information
| Technical Information |
|
|
|
|
|
| TradeSelect ThermalFloor™ | AS/NZS 4200.1:1994 |
| Flammability Index: | AS 1530.2-1993 | Low | Low< 5 |
| Material Thermal Resistance: | ASTMC518 | 0.12 m² K/W |
|
| Duty: | AS/NZS 4200.1:1994 | Extra Heavy | Classification |
| Emittance: | ASTM E408 | Side A: 0.03 Side B: 0.03 | Value |
| Reflectivity: | AS/NZS 4859.1:2002 | Side A: 97% Side B: 97% | Value |
| Resistance to water Penetration: | AS/NZS 4200.1:1994 | Unclassified | Pass |
| Vapour Barrier: | ASTM E96, Procedure B, wet cup test | Low Resistance | Classification |
| Machine Direction Tensile Strength: | AS 1301.448s-91 | 13.54 kN/m | Min 13.0kN/m |
| Lateral Direction Tensile Strength: | AS 1301.448s-91 | 11.61 kN/m | Min 10.5kN/m |
| Machine Direction Edge Tear: | TAPPI T 470 om-89 | 853 N | Min 90 N |
| Lateral Direction Edge Tear | TAPPI T 470 om-89 | 804 N | Min 90 N |
| Resistance to Dry Delamination: | AS/NZS 4200.1:1994 | Pass | Pass |
| Resistance to Wet Delamination: | AS/NZS 4200.1:1994 | Pass | Pass |

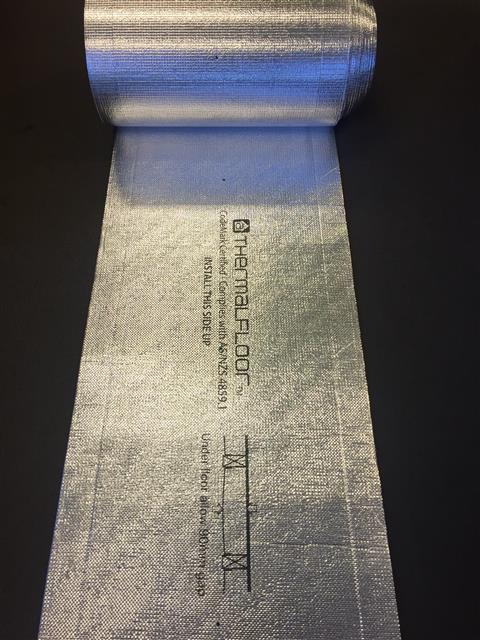

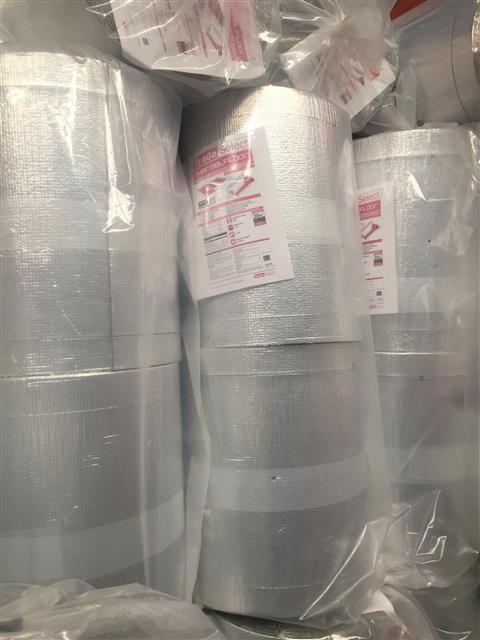

ThermalFloor
Trade Select THERMALFLOOR™ is a 2 in 1 insulation and moisture management system, designed for use under floors with a sealed air space between flooring and enclosed sub-floor space. Double-sided reflective surfaces provide increased R-value to your Floor system. Weep holes
in the membrane structure allow water and water vapour to permeate through, preventing moisture build-up under flooring.
• Made with rigid high-density foam; resists flapping with open subfloor.
• Weepholes for liquid water drainage; reduces condensation risk.
• Contributes a reflective R-value when installed adjacent to an air cavity.
• Scored edges for fast, easy Installation and a perfect fit.
• Reduces draughts through strip flooring.
• Double-sided radiant barrier.
• Fibre-free and non-allergenic.
• Helps achieve 6-star house energy rating.

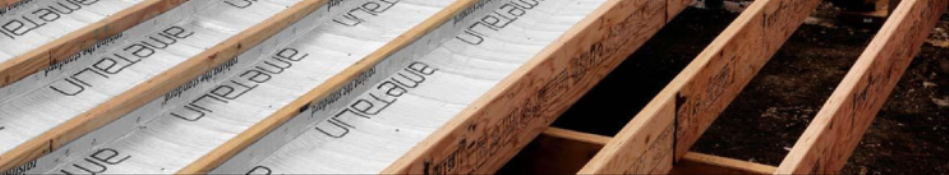

SUSPENDED FRAMED FLOOR
Typical suspended framed floor,
enclosed, unventilated, 90 mm reflective
air space, with one layer of
TradeSelect ThermalFloor™
installed between floor joins.
WINTER R3.8 | SUMMER R1.7 Enclosed Sub-Floor
Unventilated Calc Ref 299145e
